STEREO SOUND FROM A SINGLE SPEAKER
Using the same acoustic voicing and design principles of our more premium architectural and box speaker lines, the all-new Klipsch Designer series provides true Klipsch power and performance. With a dual voice coil 8” Polypropylene woofer and two 0.75” Silk Dome tweeters, the DS-180CSM brings dynamic, powerful, detailed sound to your distributed audio system—delivering true stereo sound in spaces where two speakers aren’t possible.

PATENT-PENDING SKYHOOK™ TOOL-FREE INSTALLATION SYSTEM
The exclusive installation system engages the dog legs automatically when the speaker is inserted into the cutout hole with a preset clamping force, eliminating the possibility of overtorquing. This fast, easy installation system reduces install time by up to 75%.

ALL-NEW, BEZEL-FREE GRILLE
A completely redesigned powder-coated steel grille eliminates the bezel for seamless, pristine integration into the living space.

FREQUENCY RANGE: 73Hz - 20kHz +/- 3dB
HIGH FREQUENCY DRIVER: Dual 0.75" (1.9cm) Silk Dome Tweeters
LOW FREQUENCY DRIVER: 8" (20.32cm) Polypropylene Woofer
SENSITIVITY: 94 dB @ 2.83V / 1m
COVERAGE ANGLE: 160°
POWER HANDLING: 50W RMS / 200W RMS
IMPEDANCE: 4 Ohm
ENCLOSURE MATERIAL/TYPE: ABS / Infinite Baffle
FINISH: Black Baffle/Frame, White Paintable Grille
PRODUCT WEIGHT: 3.36kg

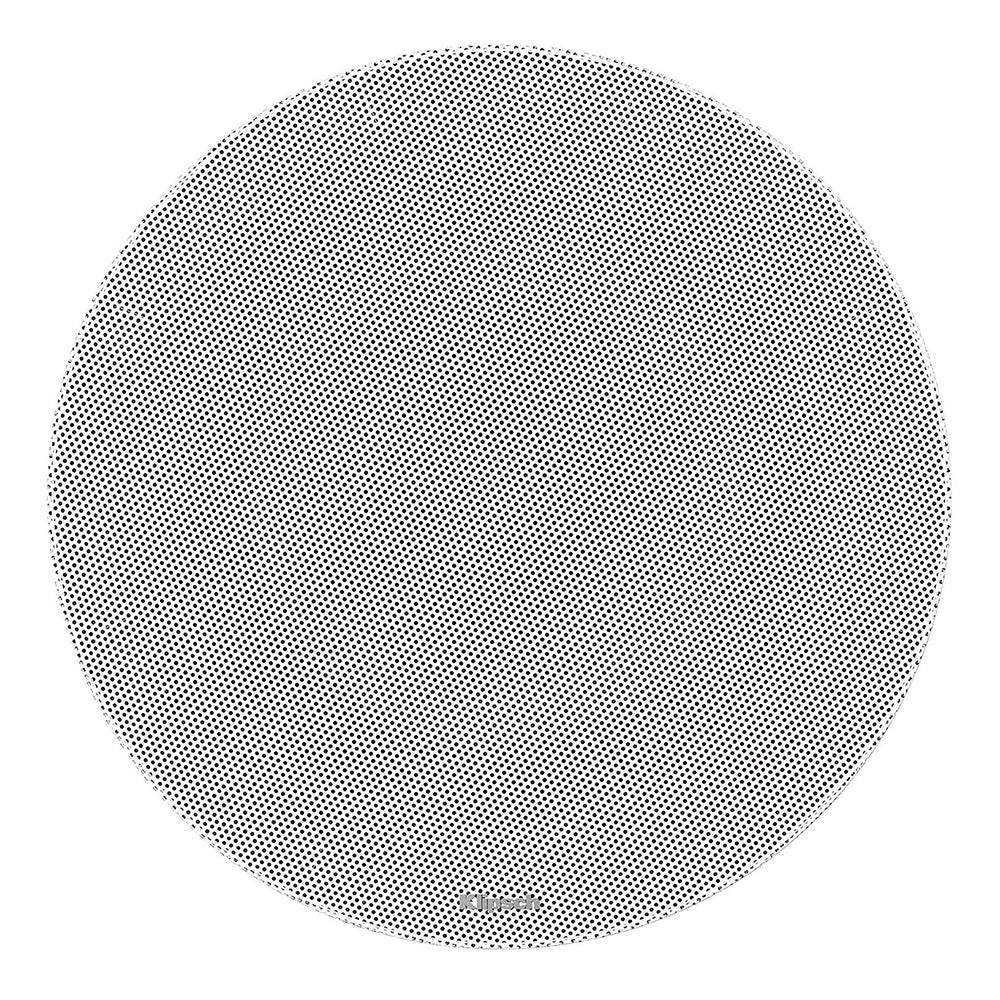

INCLUDED IN BOX: Flat Paintable Grille

Speaker Diameter: 10.88" (27.64cm)
Cut Out Diameter: 9.57" (24.31cm)
Mounting Depth: 4.24" (10.77cm)

Includes:

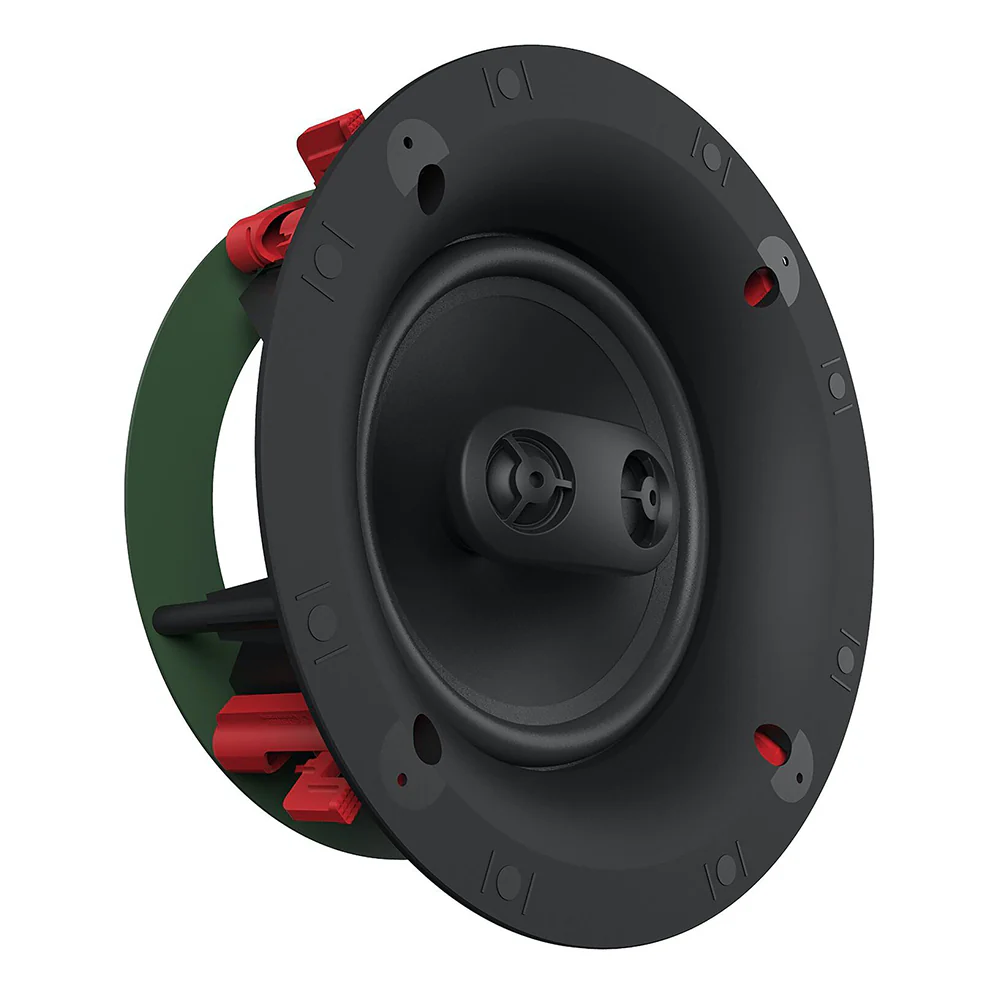

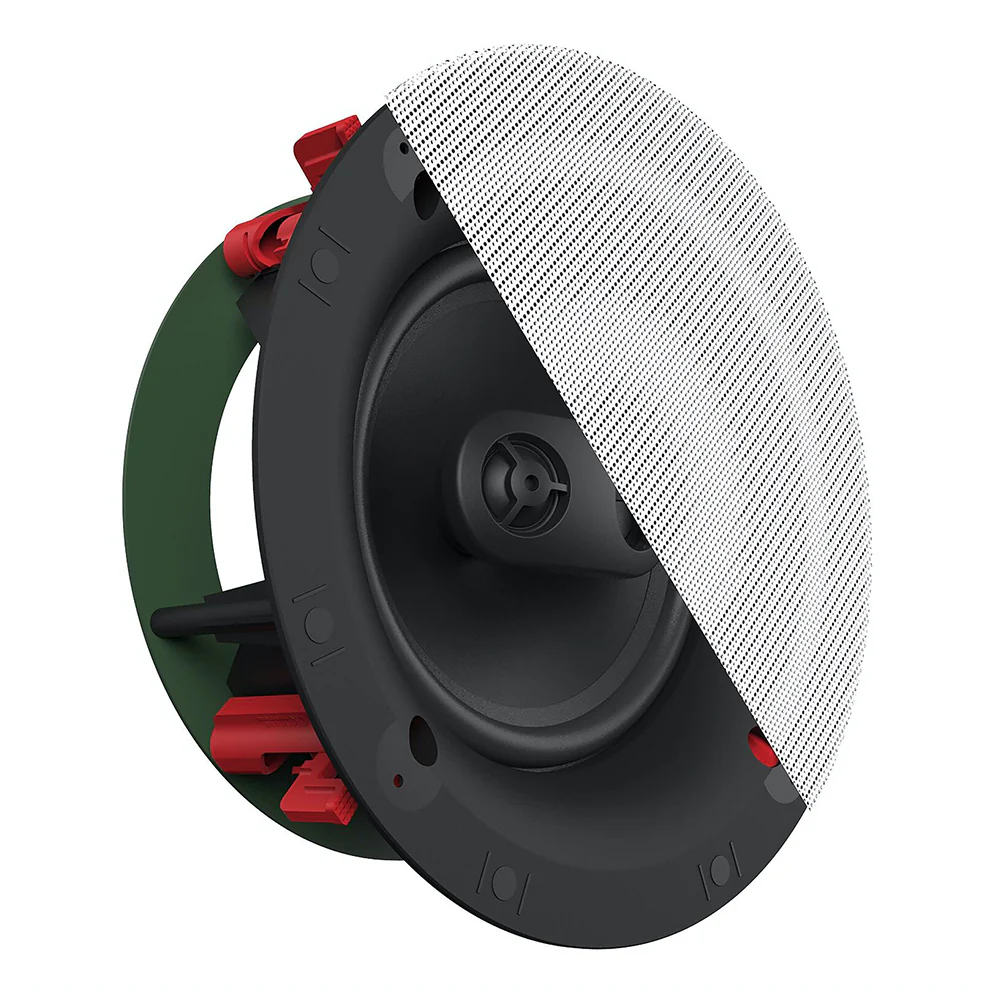

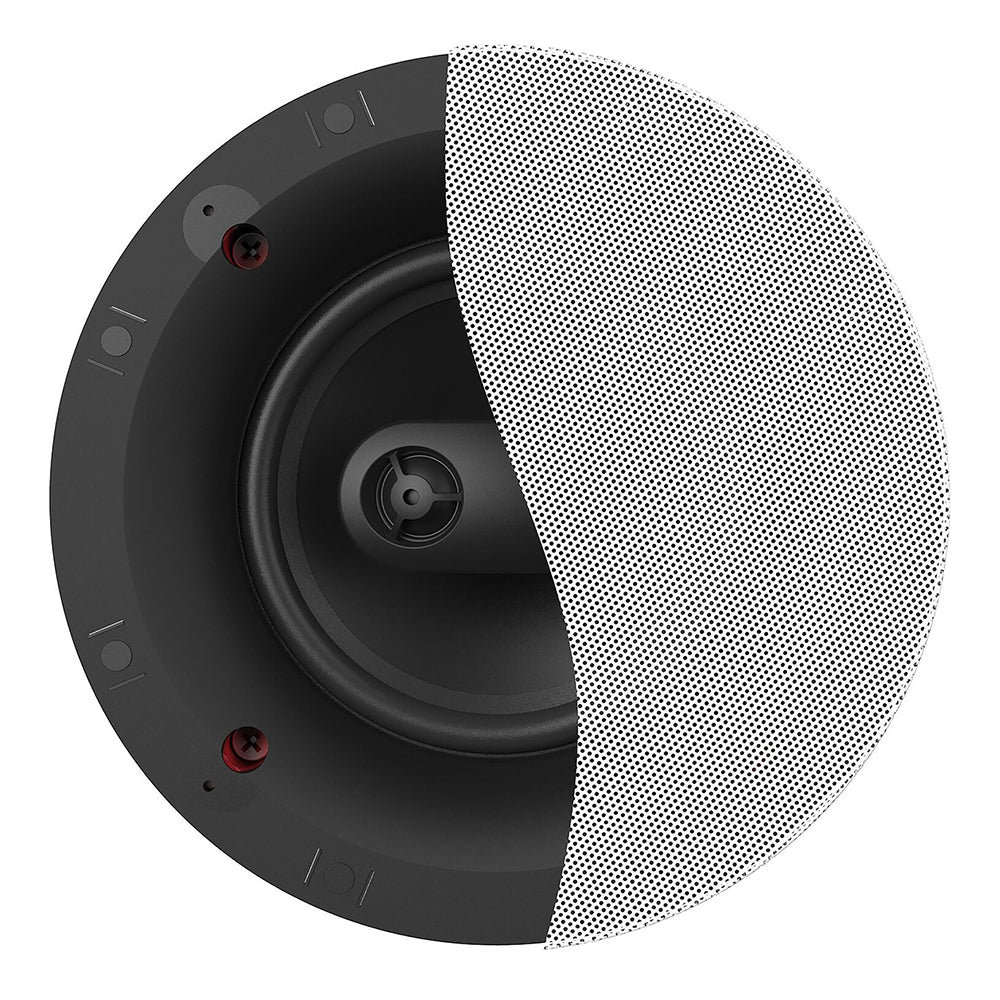

1x Klipsch DS-180CSM 8" Stereo In-Ceiling Speaker
