Model

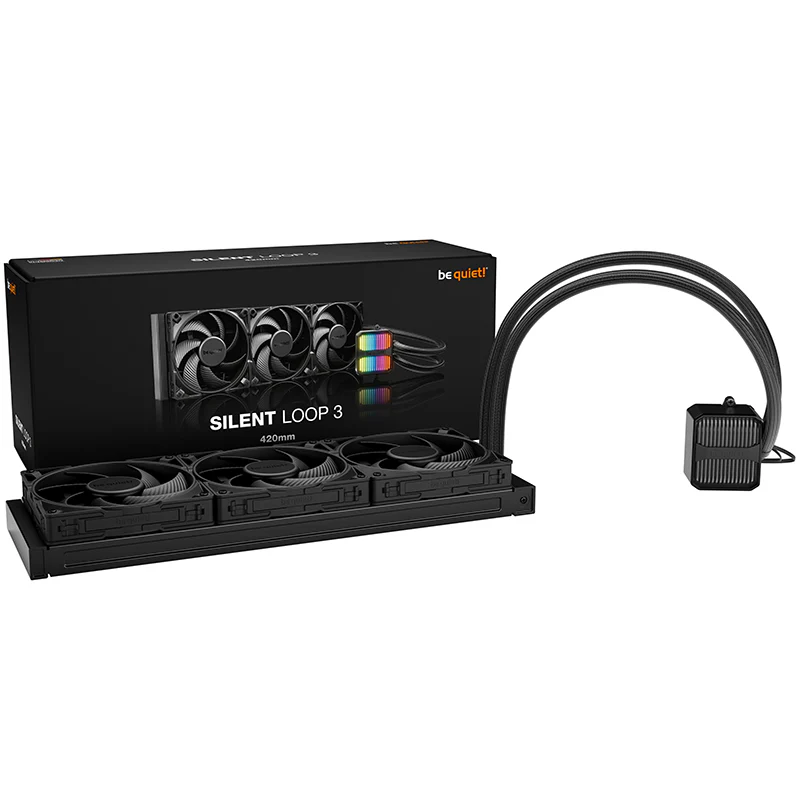

Silent Loop 3 420mm

Color option

Black

Dimensions radiator, incl. fan (H x W x D), (mm)

475 x 140 x 52

Dimensions cooling block (H x W x D), (mm)

93.5 x 80 x 56

Total weight (kg)

2.01

Socket compatibility Intel

1851 / 1700 / 1200 / 1150 / 1151 / 1155

Socket compatibility AMD

AM5 / AM4 / TR5 / TR4

Noise level (dB(A)) at 50% / 75% /100% rpm

19.4 / 29.3 / 34.3

Number of fans

3

Lighting connector

3 Pin 5V Addressable

Tube length (mm)

400

Refill port

œ“

PUMP SPECIFICATIONS

Pump speed (rpm)

3500

Pump adjustable (rpm)

1700 - 3500

Pump connector

4-pin PWM

RADIATOR SPECIFICATIONS

Dimensions (L x W x H), (mm)

457 x 140 x 27

Radiator material / finish

aluminum / black spray painted

Base material / finish

copper / nickel plating

FAN SPECIFICATIONS

Fan model

Silent Wings 4 140mm PWM

Fan dimensions (mm)

140 x 140 x 25

Speed at 100% PWM (rpm)

1900

Airflow at 100% PWM / 12V (CFM / m3/h)

78.4 / 133.2

Air Pressure at 100% PWM / 12V (mm H2O)

2.36

Bearing technology

FDB

Motor technology

6-pole fan motor

Rated Voltage (V)

12

Input current (A)

0.30

Safety current (A)

0.40

Input power (W)

3.6

Connector

4-pin PWM

Cable length (mm)

500

Lifespan (h / 25 °C)

300,000

ACCESSORIES

Thermal grease (Type)

Included

Mounting set

Intel, AMD

Adapter cables

Y-cable

Bottle of coolant (ml)

œ“ / 100

User manual languages

CN, DE, EN, ES, FR, JP, PL, RU, TW, UA

SAFETY CERTIFICATIONS

Approvals

CE, FCC, UKCA

ENVIRONMENTAL DIRECTIVES

RoHS

œ“

WEEE

œ“

Triman

œ“
